Frameless Glass Systems

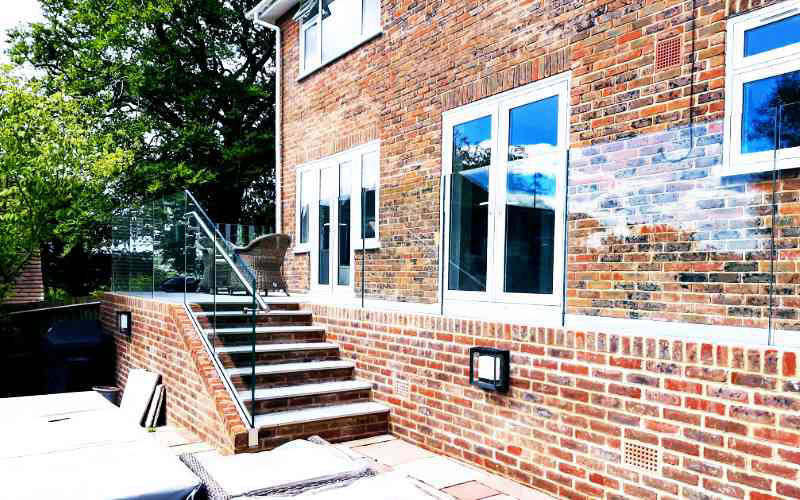

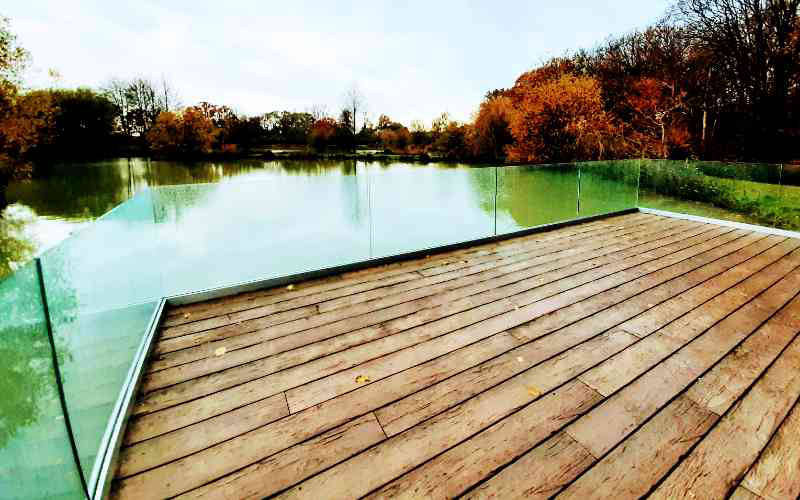

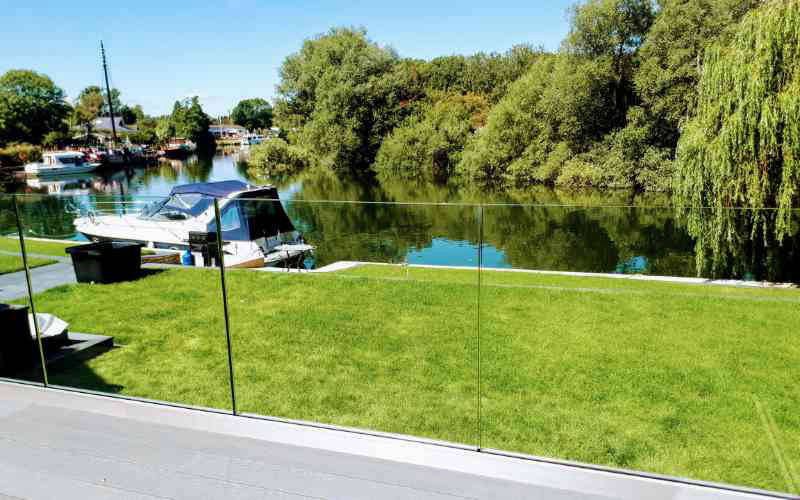

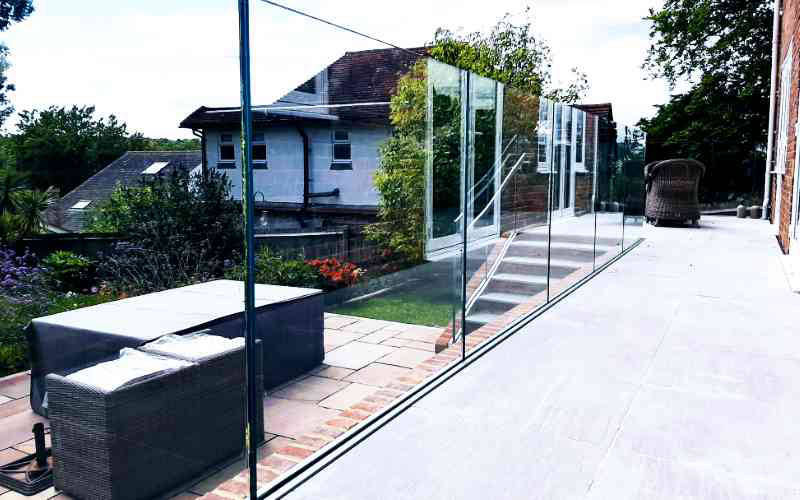

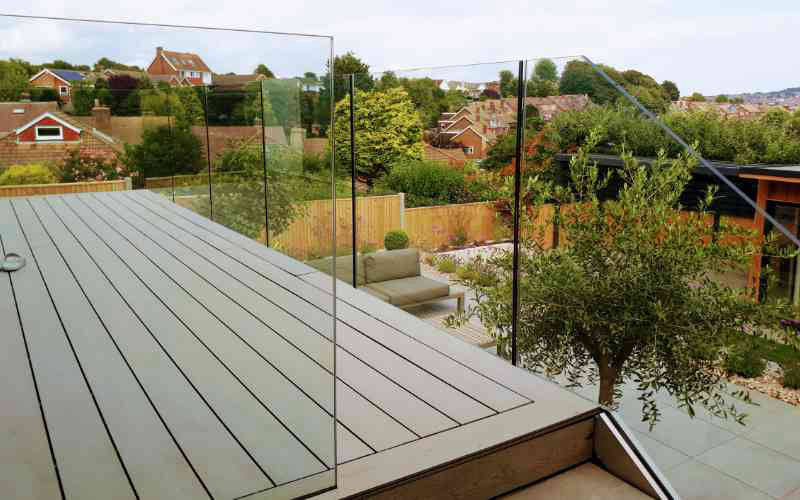

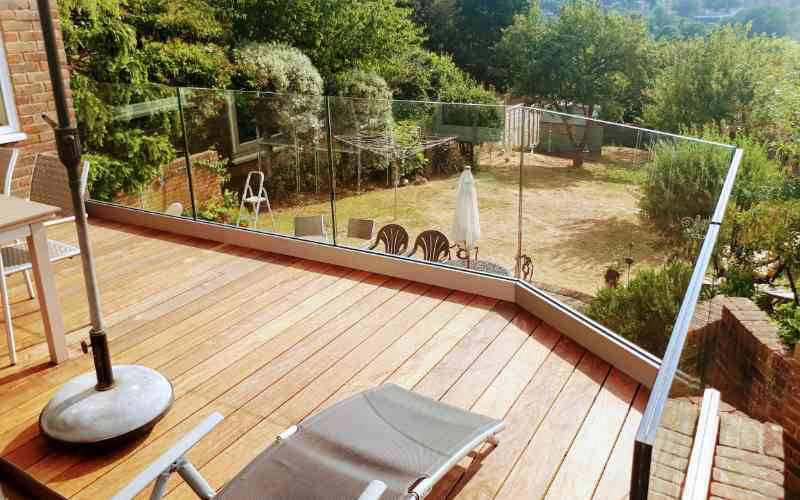

  1. THE SYSTEM - No uprights or handrail, this system is as minimal as they come. The aluminium base channel can be left on show or hidden in the deck for great effect.
  2. BASE CHANNEL - Touch extruded aluminium base channel with integral glass clamp system that does away with the ned for any uprights.
  3. FINISH - Standard finish is a anodised brushed stainless steel effect. This can be powder coated to order in any standard RAL colour.
  4. GLASS - Options are 15mm toughened, 17.5mm and 21.5mm Toughened and laminated. Toughened and laminated generally on raised areas and can be just toughened at ground level.

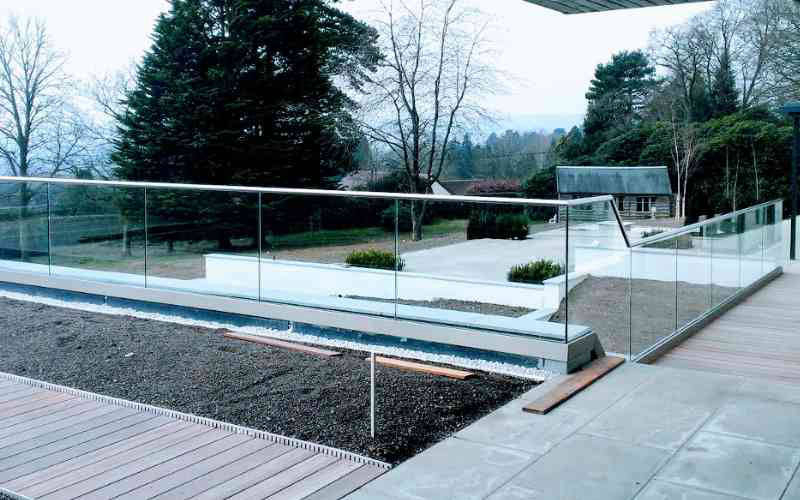

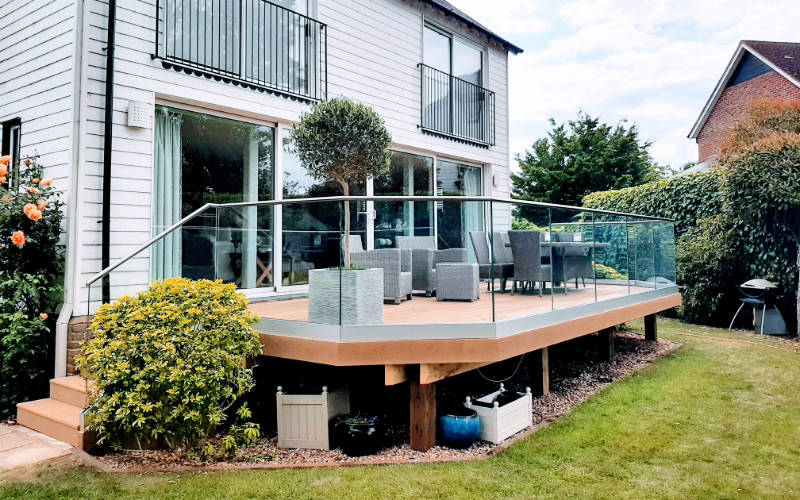

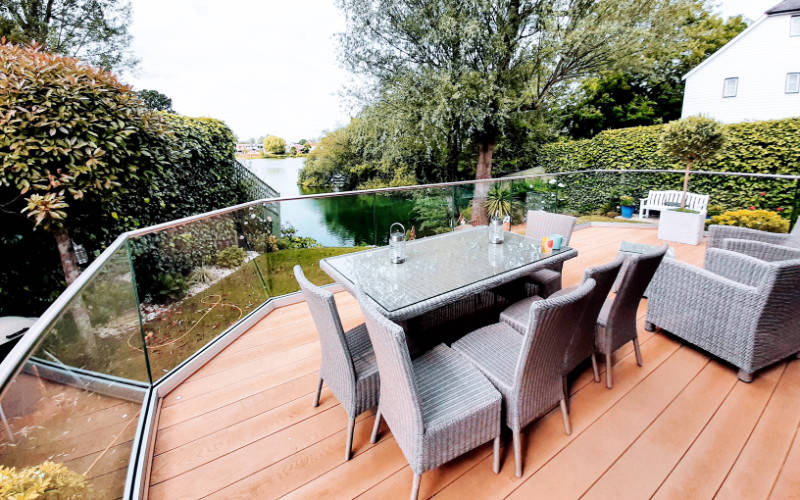

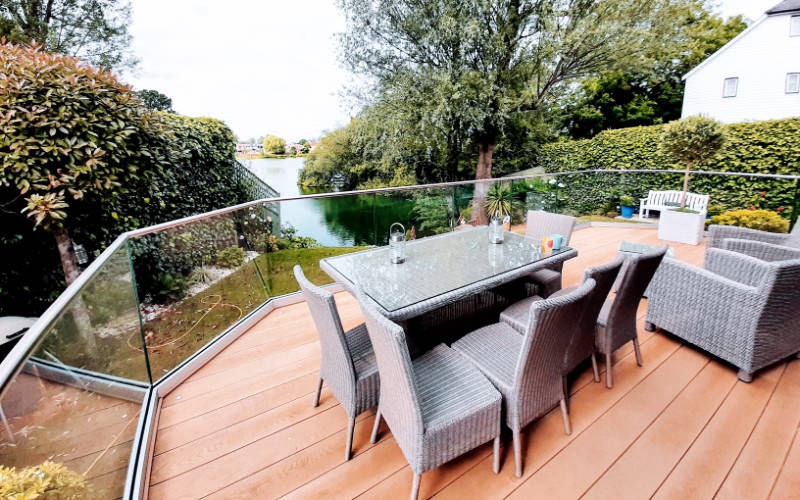

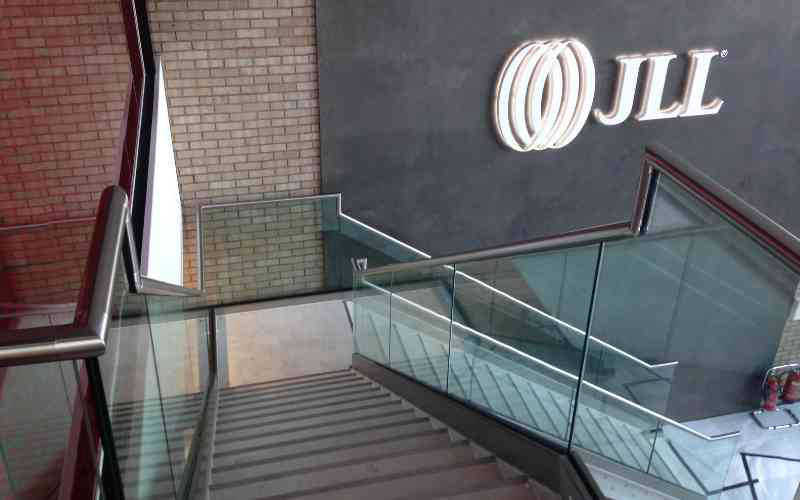

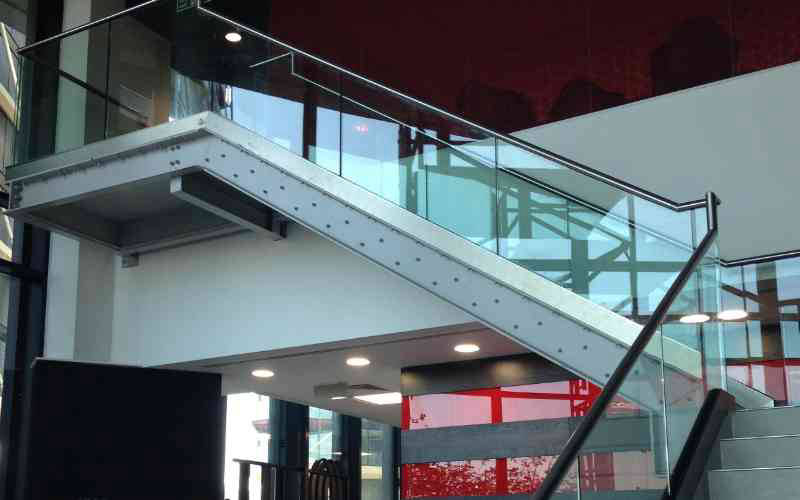

  5. TOP RAIL - If you desire a top rail we can offer either a 42mm or 48mm diameter brushed stainless channel rail slotting directly on top of the glass using a rubber gasket.

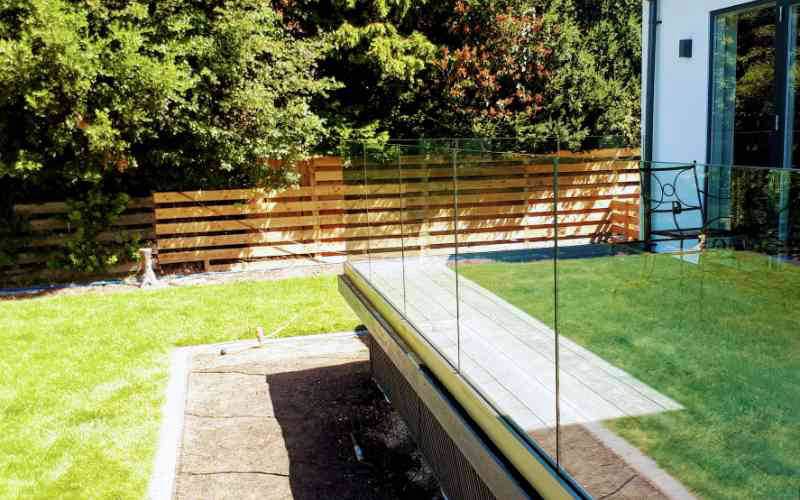

  6. MOUNTING - Our base channel can be top or side mounted. I can also be embedded into a deck or terrace to give a flush finish.

  1. MADE TO MEASURE - All of our systems are of a modular construction and are made to measure. Posts base plates are welded but items such as rail elbows, saddles etc are bonded in place during installation giving a smooth finish.
  2. BUILDING REGULATIONS - This system is compliant with UK Building Regulations.
  3. LOAD RATING -  We have test data available on request for all of our systems. All version meet the  rating requirements for domestic use with some meeting higher ratings for commercial use.
