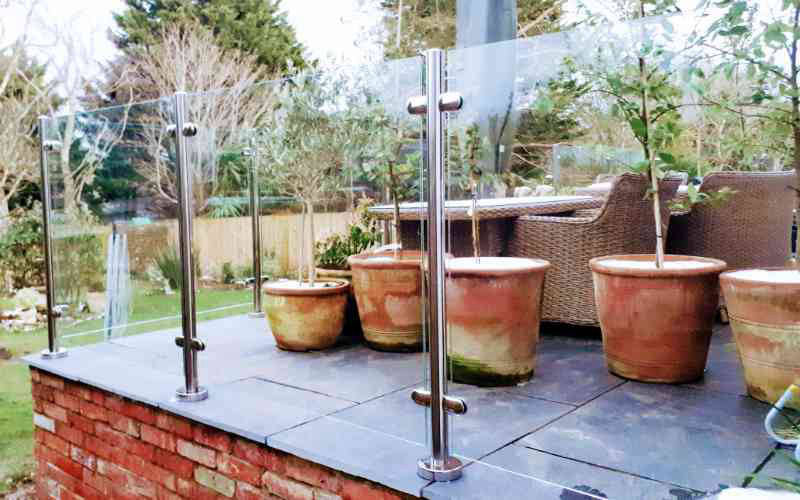

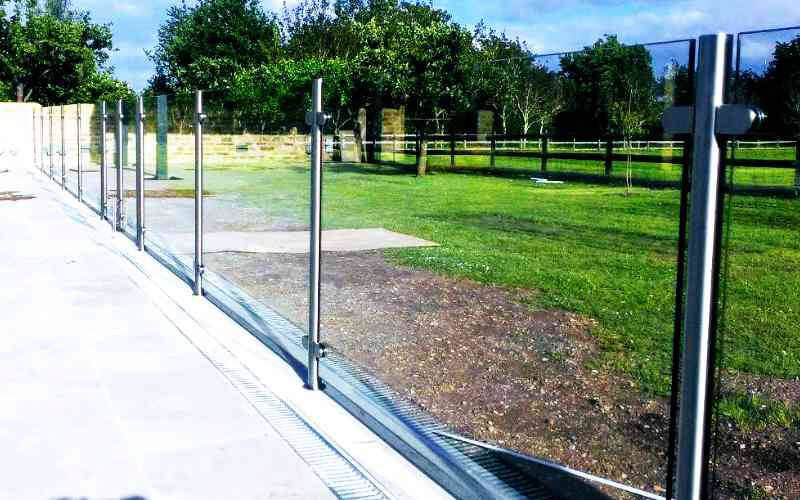

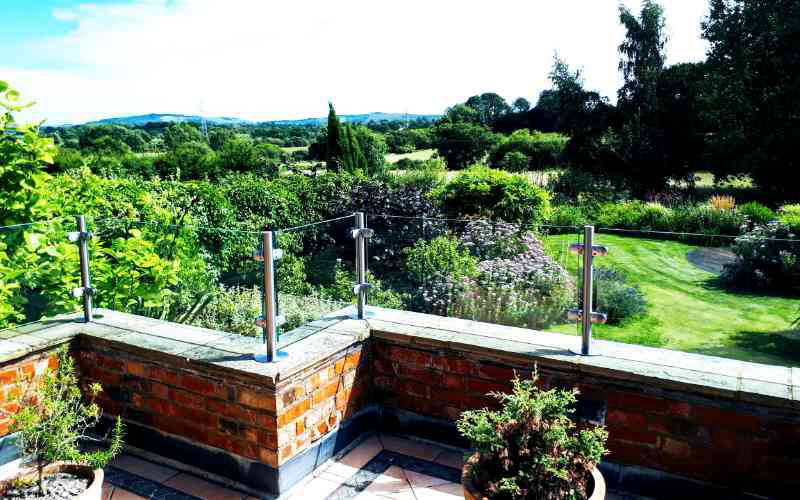

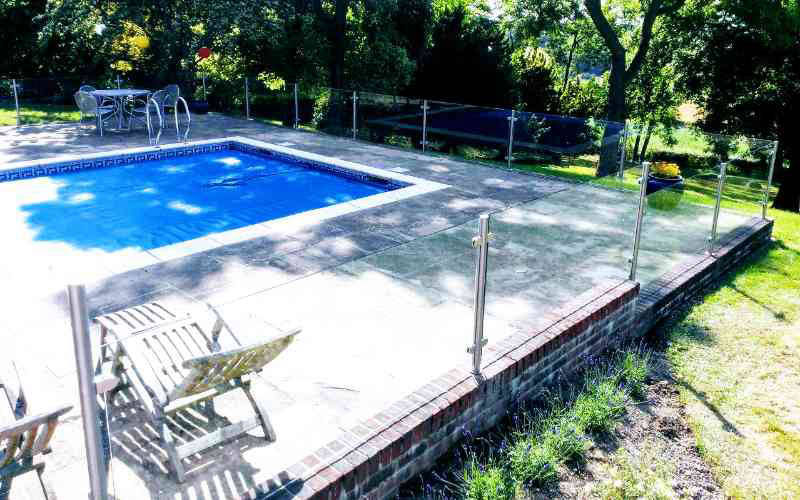

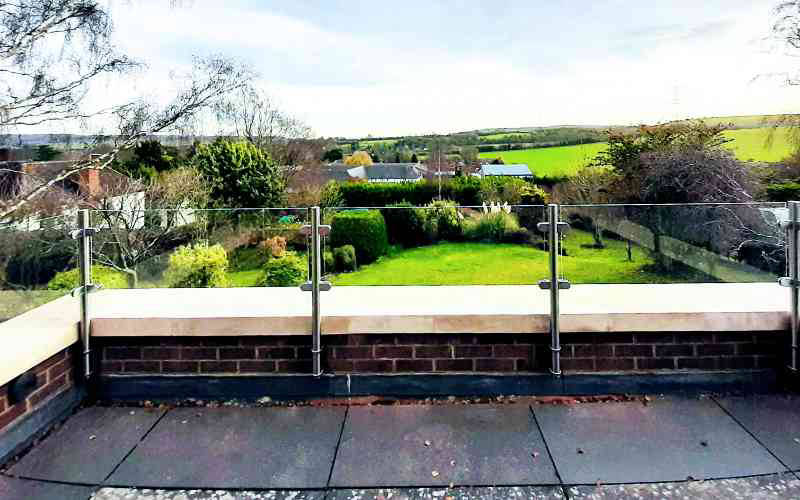

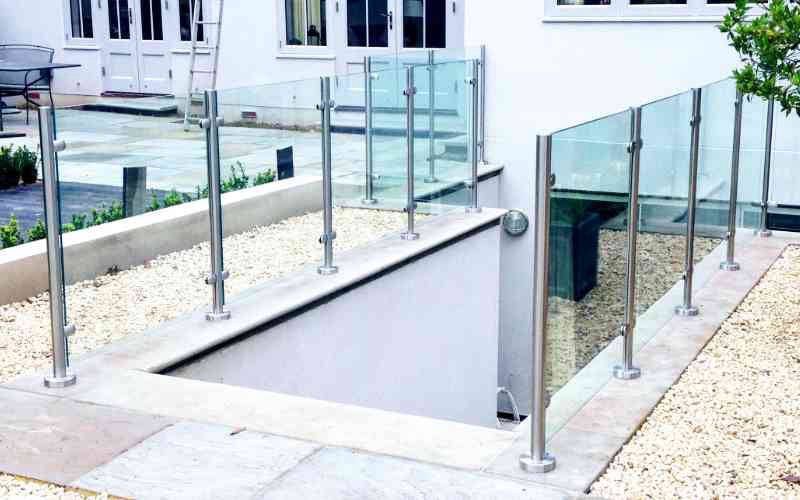

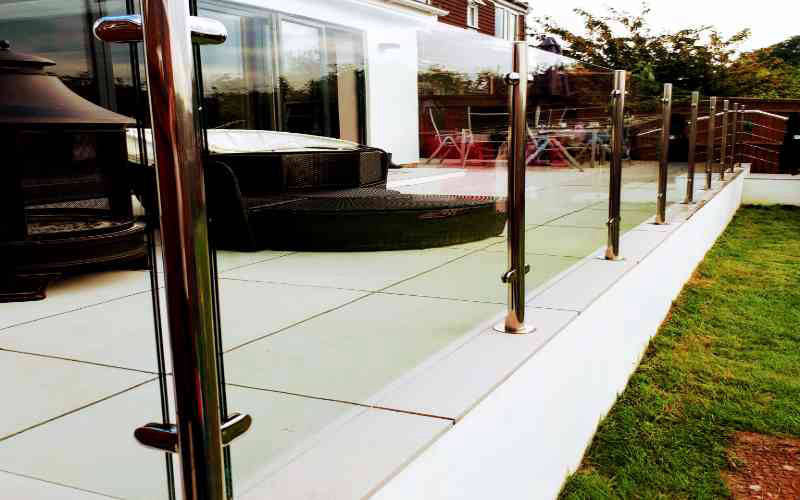

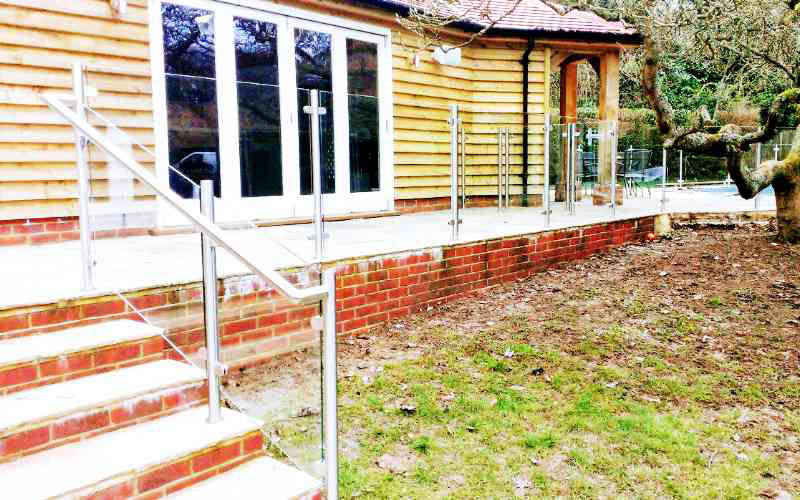

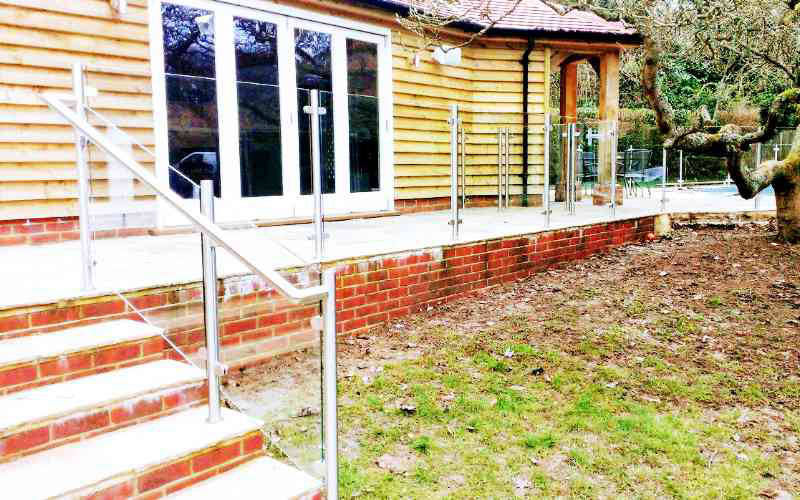

Toughened and Laminated Glass Balustrade - Posts Without a Top Rail

  1. THE SYSTEM - For clean lines and maximum view this system is ideal. We use toughened laminated glass for extra safety in this design as there is no top rail this is essential when the system is installed at heights.
  2. STAINLESS STEELWORK - Our systems come in two grades of stainless steel, 304 grade for internal applications and a 316 marine grade for external applications.
  3. DIAMETER - The round tube comes in two sizes, 42.4mm for a light system and a 48.3mm diameter for a stronger system. The 48mm is generally but not exclusively used for our outdoor projects. (40 x 40mm square box section is also available)
  4. FINISH - The most popular is a brushed satin finish but we recommend a bright polished finish in coastal locations.
  5. LAMINATED GLASS - Our standard would be 11.5mm clear toughened and laminated glass with polished edges in all high level locations such as raised terraces and balconies. Options are available for sandblasted (obscure), rounded corners or toughened but not laminated glass for low level areas.
  6. MOUNTING - The most common is a welded base plate with rosette cover for floor, deck mounting. Side mountings in various formats can cater for most situations.

  1. MADE TO MEASURE - All of our systems are of a modular construction and are made to measure. Posts base plates are welded but items such as rail elbows, saddles etc are bonded in place during installation giving a smooth finish.
  2. BUILDING REGULATIONS - This system is compliant with UK Building Regulations.
  3. LOAD RATING -  We have test data available on request for all of our systems. All version meet the  rating requirements for domestic use with some meeting higher ratings for commercial use.
