Juliette balconies, glass and wire infill

  1. THE SYSTEM - Glass or vertical tension wire infill. Frameless or framed and designed to meet your needs. Horizontal tension wires will not meet UK Building Regulations.
  2. STAINLESS STEEL - All tubular designs would use our 48mm diameter stainless steel tube.

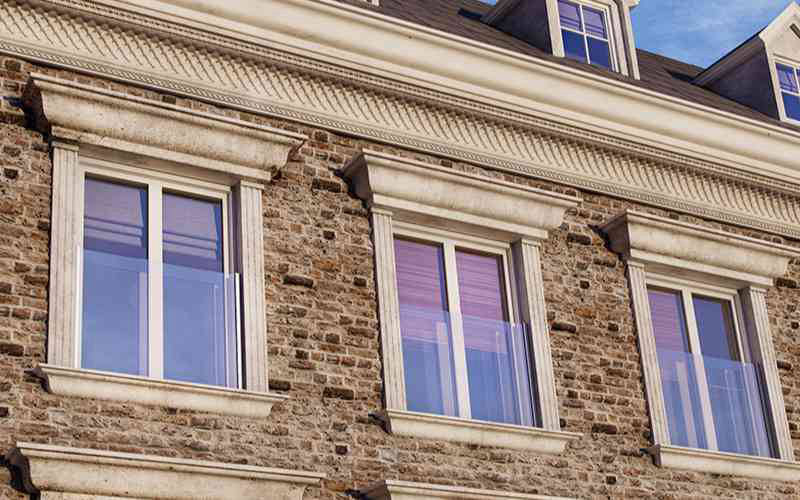

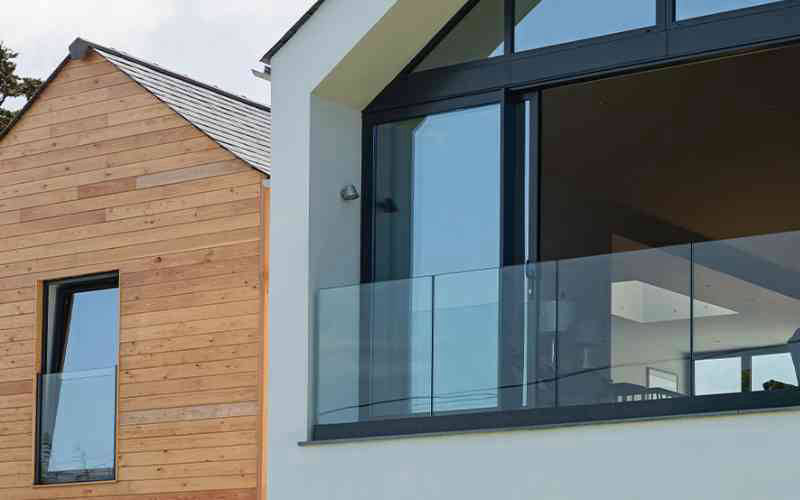

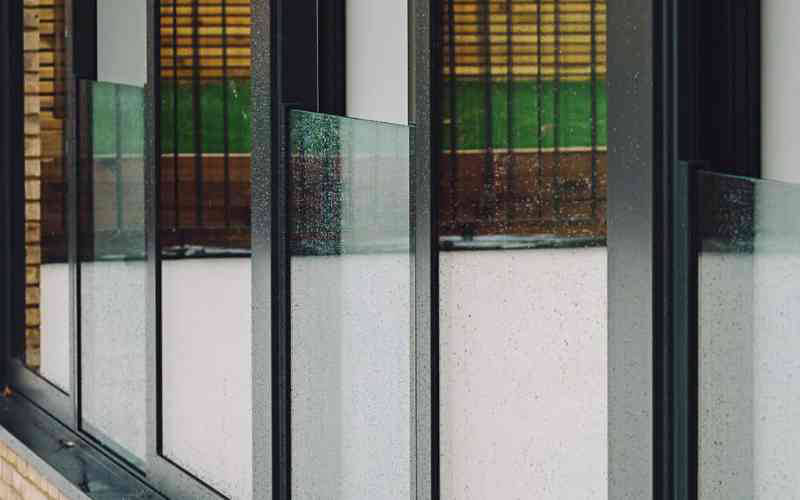

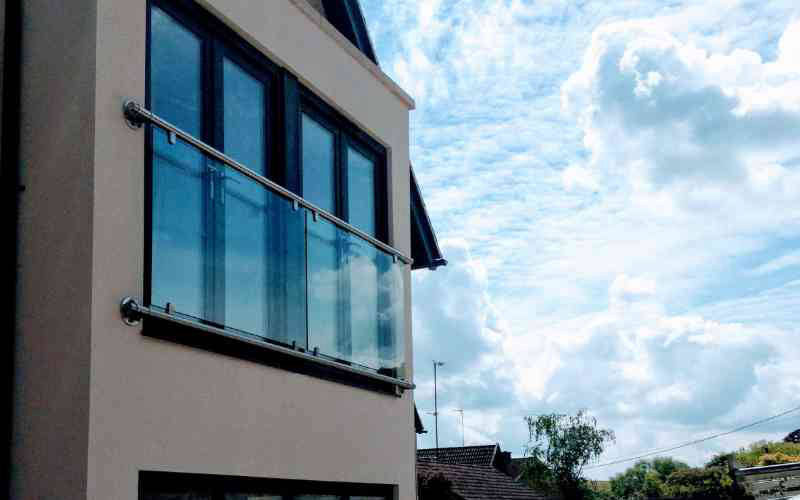

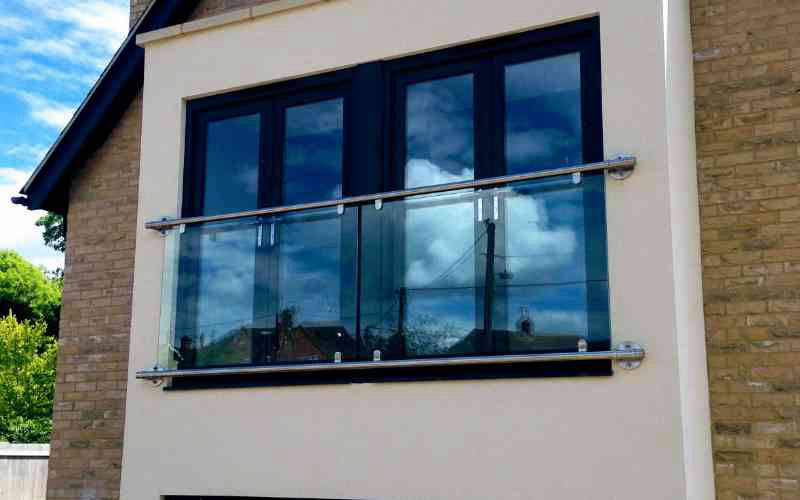

  3. GLASS - Railed systems typically use a 10mm clear toughened pane. Frame or top rail less use either a 17.5mm or 21.5mm toughened and laminated pane.

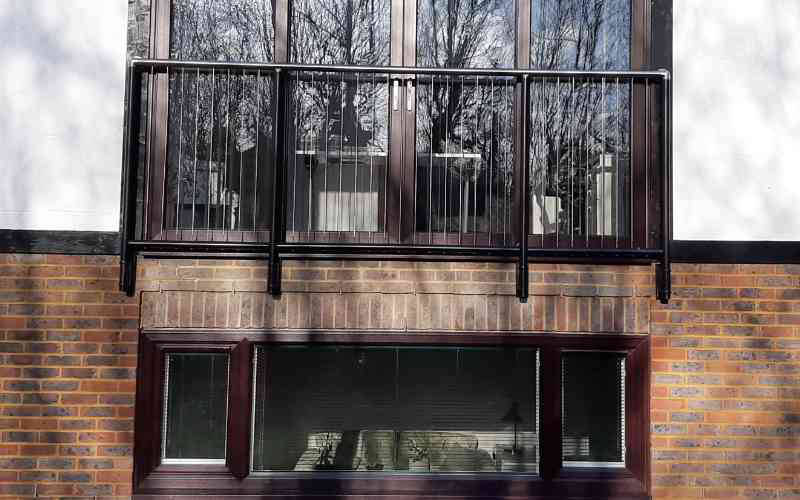

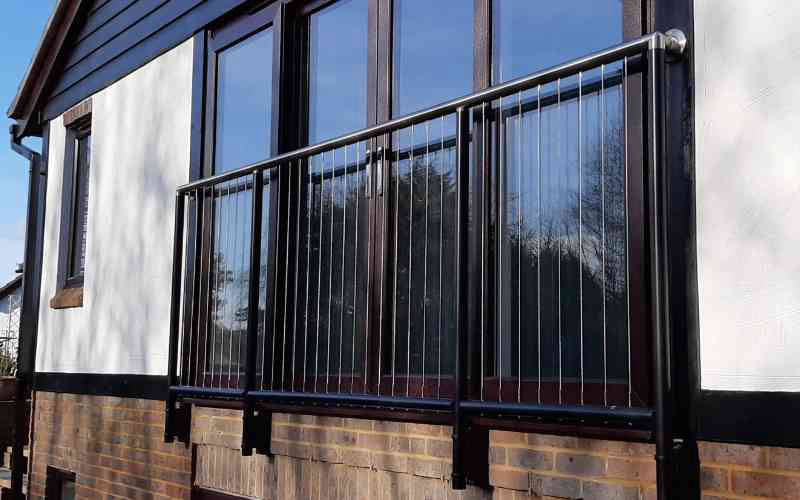

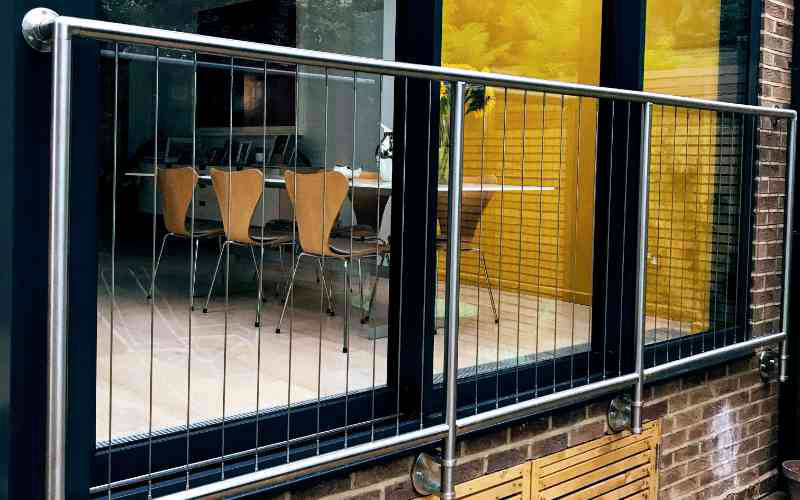

  4. WIRE INFILL - 4mm diameter vertical stainless steel wires typically spaced at around 90mm.
  5. FINISH - The most popular is a brushed satin finish but we recommend a bright polished finish in coastal locations. Powder coating to most RAL colours is also possible on request.
  6. MOUNTINGS - All systems require either a solid brick / block wall or timber framed building.
  7. WIDTH LIMITATION - Most of our systems are generally limited to a opening span of 3500mm. If you have a greater opening please contact us to discuss in detail and we may well be able to design a suitable solution.
  8. NOT SUITABLE FOR - Modern clad buildings where external insulation blocks space of the cladding from the building. (unless mounting points have been built into the external wall/s during construction)
  9. INSTALLATION - Supply only or we can install for you if you are within an 75 mile radius of us at BN158TU

  1. MADE TO MEASURE - All of our systems are of a modular construction and are made to measure. Posts base plates are welded but items such as rail elbows, saddles etc are bonded in place during installation giving a smooth finish.
  2. BUILDING REGULATIONS - This system is compliant with UK Building Regulations.
  3. LOAD RATING -  We have test data available on request for all of our systems. All version meet the  rating requirements for domestic use with some meeting higher ratings for commercial use.
